Earthing design is a crucial aspect of electrical systems, ensuring safety and proper functioning. EPC (Engineering, Procurement, and Construction) contractors can optimize costs in earthing design through several strategies, supported by technical justifications. Here are some ways to achieve cost savings:



1. Site-Specific Analysis:

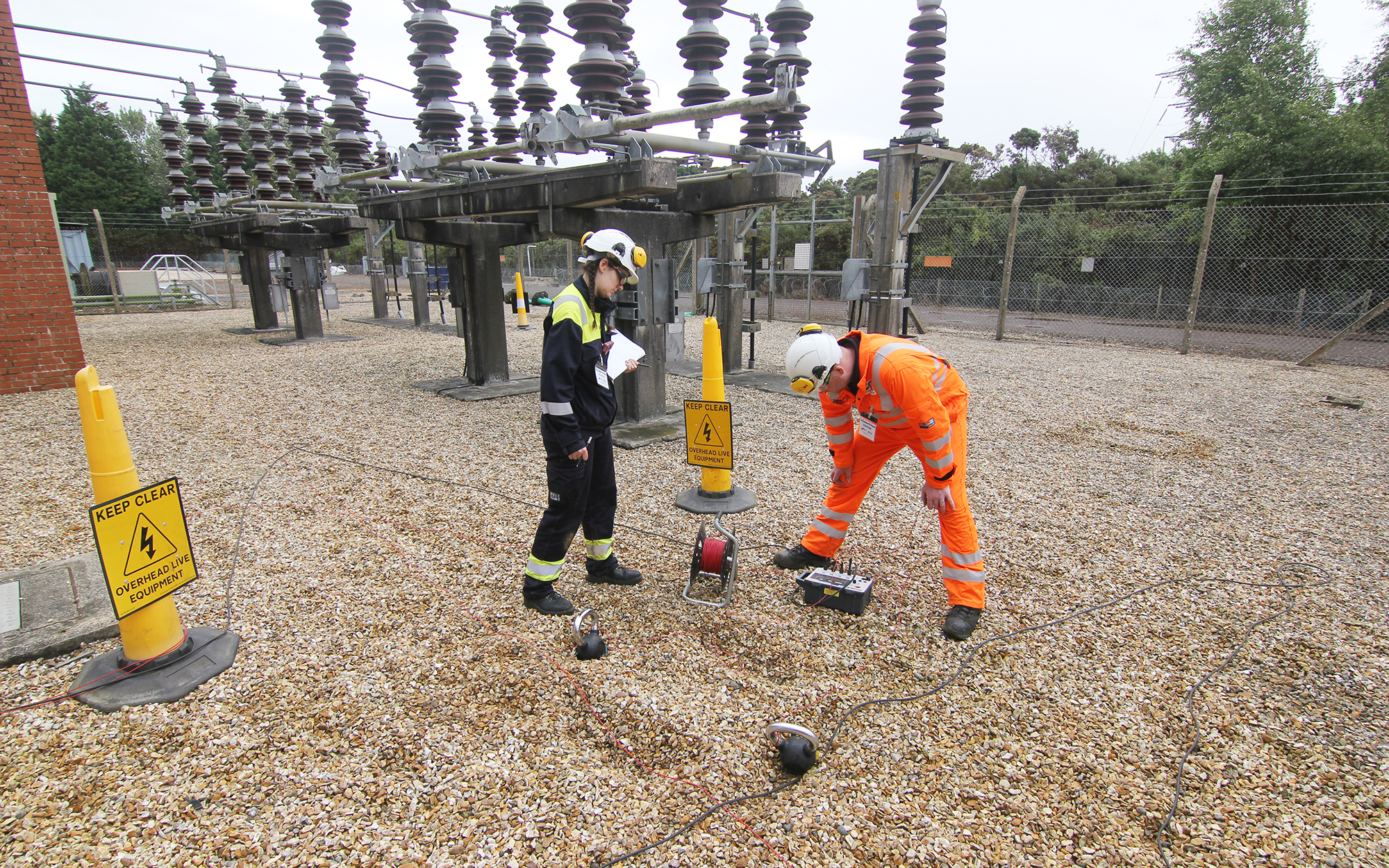

Conduct a soil resistivity test to understand the electrical properties of the soil. Different soil types have varying resistivities, and a site-specific analysis helps in determining the optimum design for the earthing system.

Impact:

A site-specific approach ensures that the grounding system is tailored to the unique characteristics of the location, preventing over-engineering and the use of unnecessary materials.



2. Performance-Based Design:

Rather than relying solely on conservative standards, assess the specific needs of the electrical system and design the earthing system accordingly. This involves a comprehensive risk assessment to determine the criticality of different components.

Impact:

This approach prevents overdesigning, ensuring that the earthing system is precisely tuned to meet performance requirements without unnecessary redundancy.



3. Selective Coordination:

Ensure that the earthing system is coordinated with other protective devices in the electrical network. Selective coordination ensures that only the closest upstream protective device operates in the event of a fault.

Impact:

By avoiding simultaneous tripping of multiple protective devices, the design can be optimized, leading to potential savings in both material and installation costs.



4. Material Selection:

Choose materials based on their electrical conductivity, resistance to corrosion, and durability. Copper, for example, is a common material due to its excellent conductivity and corrosion resistance.

Impact:

Opting for materials that meet technical requirements without unnecessary over-specification can significantly reduce costs without compromising the performance of the earthing system.



5. Maintenance Considerations:

Design the earthing system with accessibility and ease of maintenance in mind. This includes proper spacing of components and the use of materials that withstand environmental conditions.

Impact:

Proactive design for maintenance can reduce long-term costs associated with repairs or replacements, as well as minimize downtime during maintenance activities.



6. Ground Enhancement Materials:

Utilize ground enhancement materials to improve the electrical conductivity of the soil. These materials may include conductive additives or compounds that enhance the performance of the grounding system.

Impact:

Improving soil conductivity can lead to a more efficient grounding system, potentially reducing the need for extensive grounding infrastructure and associated costs.



7. Utilize Standardization:

Standardize earthing system designs across projects where applicable. This involves using consistent components, configurations, and installation practices.

Impact:

Standardization allows for bulk purchasing of materials and streamlines the engineering process, reducing costs associated with customization and variation across different projects.



8. Risk-Based Approach:

Evaluate the risk associated with potential faults and their impact on the electrical system. This involves identifying critical components and areas where a failure could have severe consequences.

Impact:

Focusing resources on critical areas allows for a more efficient allocation of budget, directing investments where they are most needed for risk mitigation.



9. Local Regulations Compliance:

Ensure that the earthing design complies with local regulations and codes. While meeting minimum requirements, explore opportunities for alternatives that still ensure safety.

Impact:

Adhering to regulations ensures safety but avoiding unnecessary over-compliance can prevent unnecessary expenses on features that exceed regulatory needs.



10. Lifecycle Cost Analysis:

Conduct a comprehensive analysis that considers not only upfront costs but also maintenance, replacement, and operational expenses over the system’s entire lifespan.

Impact:

By understanding the long-term cost implications, decisions can be made that prioritize efficiency and sustainability, leading to overall cost savings throughout the lifecycle of the earthing system.



By implementing these strategies, EPC contractors can design earthing systems that meet safety standards while optimizing costs through a more tailored and efficient approach. Each decision should be well-justified through a comprehensive understanding of the specific project requirements and local conditions.
